EXPLODED VIEW 5M – Timing chain FIAT 500 Giardiniera Base F

Select an exploded view number to view the product

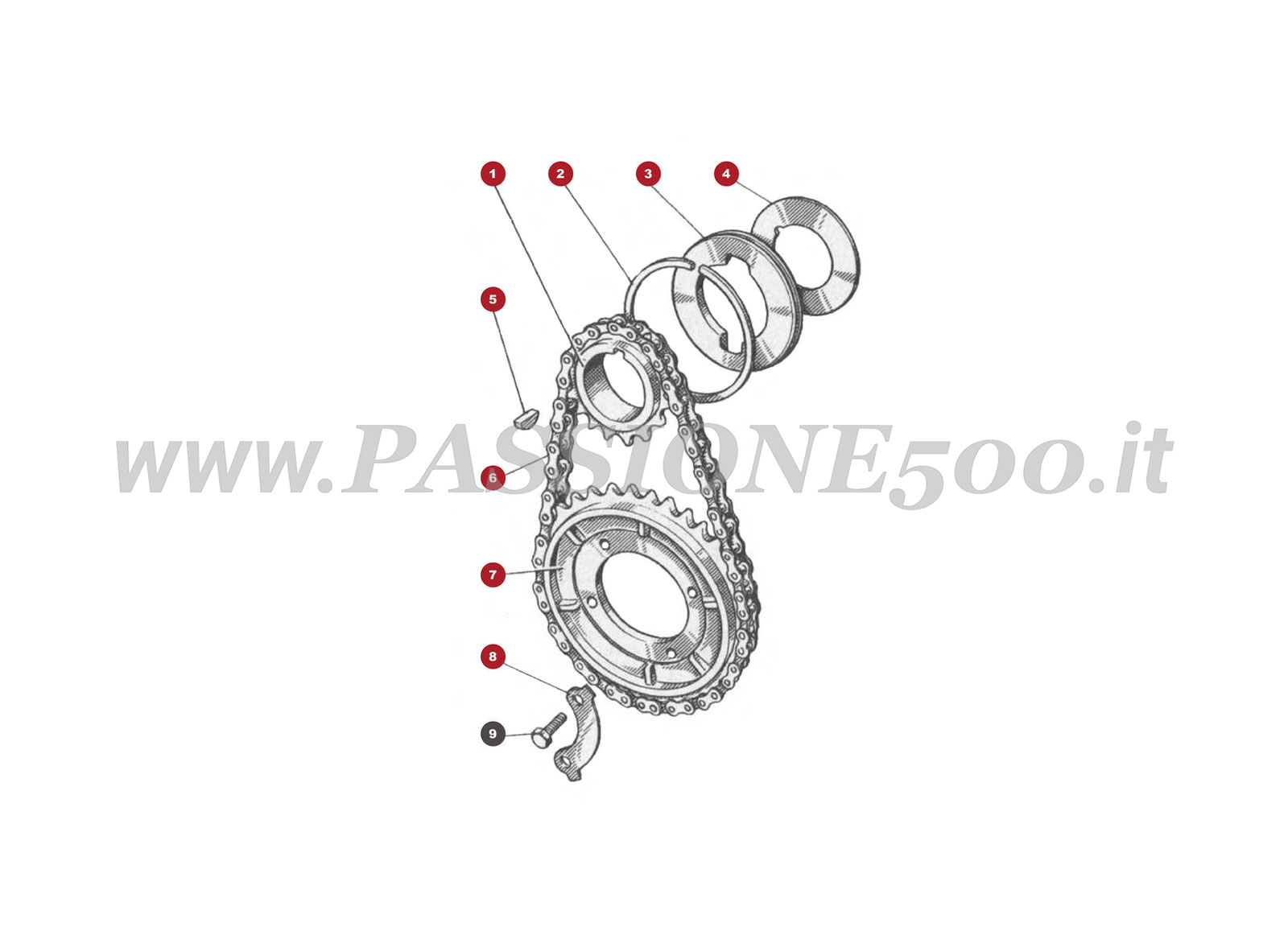

EXPLODED VIEW 5M – Timing chain FIAT 500 Giardiniera Base F

EXPLODED VIEW 5M – Timing chain FIAT 500 Giardiniera Base F

5

Crankshaft Woodruff Key – Timing Chain Side – Fiat 500

3,00 €
COD: MOT190C

1

Timing Chain Kit with Roller Chain Fiat and Autobianchi 500 Giardiniera

35,00 €
COD: MOT30D

2

Timing Spacer Washer Ring Fiat 500 N (from engine n.° 146091) – D – F – L – R – Giardiniera

13,00 €
COD: MOT31B

3

Timing Spacer with Ring Housing Fiat 500 N (from engine n.° 146091) – D – F – L – R – Giardiniera

29,00 €
COD: MOT31C

4

Timing Spacer Washer Fiat 500 N (from engine n.° 146091) – D – F – L – R – Giardiniera

15,00 €
COD: MOT31D

6

Timing Chain Kit with Roller Chain Fiat and Autobianchi 500 Giardiniera

35,00 €
COD: MOT30D

7

Timing Chain Kit with Roller Chain Fiat and Autobianchi 500 Giardiniera

35,00 €
COD: MOT30D

8

Timing Chain Locking Plate on Driven Gear Fiat 500

3,00 €
COD: MOT31

9
