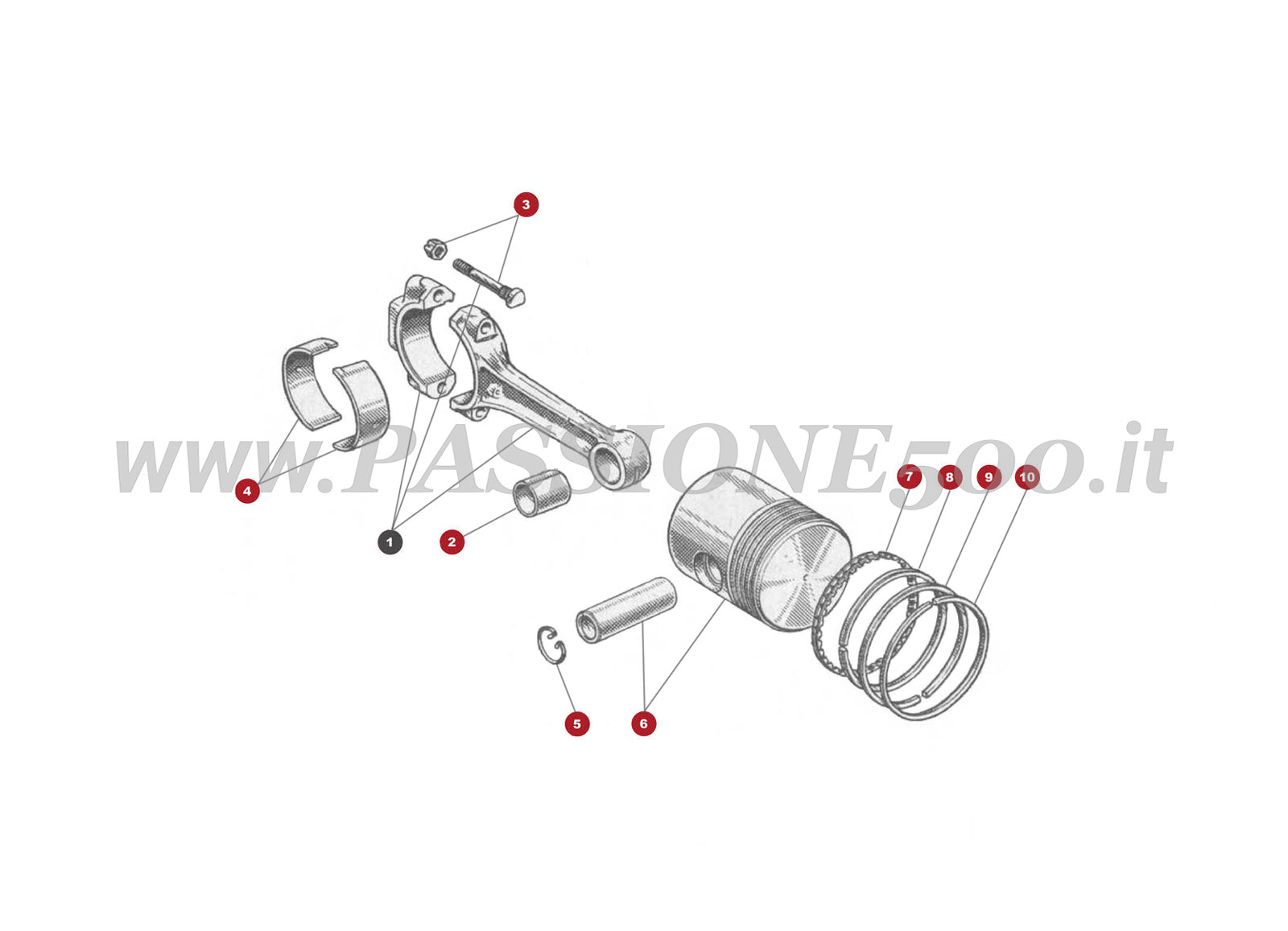

EXPLODED VIEW 4M – Piston and connecting rod FIAT 500 Giardiniera Base F

Select an exploded view number to view the product

EXPLODED VIEW 4M – Piston and connecting rod FIAT 500 Giardiniera Base F

2

1

3

4

5

6

7

8

9

10

EXPLODED VIEW 4M – Piston and connecting rod FIAT 500 Giardiniera Base F

EXPLODED VIEW 4M – Piston and connecting rod FIAT 500 Giardiniera Base F

2

Con Rod Bush Bearing – Standard Size – Fiat 500

Con Rod Bush Bearing – Undersized -0,50 mm – Fiat 500

1

3

Con Rod Fixing Bolt Fiat 500

4

Big End Con Rod Shell Bearing Kit – Standard Size – Fiat 500

Big End Con Rod Shell Bearing Kit – Undersized -0,254 mm – Fiat 500

Big End Con Rod Shell Bearing Kit – Undersized -0,508 mm – Fiat 500

Big End Con Rod Shell Bearing Kit Tri-Metallic – Standard Size – Fiat 500

Big End Con Rod Shell Bearing Kit Tri-Metallic – Undersized -0,254 mm – Fiat 500

5

Piston Gudgeon Pin Fixing Clip Fiat 500

6

Piston with Rings – Standard Ø external 67,40 mm – 499 ccm³ – Fiat 500 D – F – L – Giardiniera

Piston with Rings – Oversized +0,40 mm / Ø external 67,80 mm – Fiat 500 D – F – L – Giardiniera

Piston with Rings – Oversized +0,60 mm / Ø external 68,00 mm – Fiat 500 D – F – L – Giardiniera

Piston with Rings – Increased Displacement 540 ccm³ / Ø external 70,00 mm – Fiat 500 D – F – L – Giardiniera

Piston with Rings – Increased Displacement 650 ccm³ / Ø external 77,00 mm – Fiat 500 D – F – L – R

Piston with Rings – Increased Displacement 650 ccm³ / Oversized +0,60 mm – Ø external 77,60 mm – Fiat 500 D – F – L – R

Piston with Rings – Increased Displacement 650 ccm³ / Oversized +0,40 mm – Ø external 77,40 mm – Fiat 500 D – F – L – R

7

Kit of Rings for Piston Standard Ø 67,40 mm Fiat 500 D – F – L – Giardiniera

Kit of Rings for Piston Oversized +0,40 mm / Ø 67,80 mm Fiat 500 D – F – L – Giardiniera

Kit of Rings for Piston Oversized +0,60 mm / Ø 68,00 mm Fiat 500 D – F – L – Giardiniera

Kit of Rings for Piston Ø 70,00 mm – height 2/2/3,5 mm – Fiat 500 D – F – L – Giardiniera

Kit of Rings for Piston Ø 70,00 mm – height 2/2/4 mm – Fiat 500 D – F – L – Giardiniera

8

Kit of Rings for Piston Standard Ø 67,40 mm Fiat 500 D – F – L – Giardiniera

Kit of Rings for Piston Oversized +0,40 mm / Ø 67,80 mm Fiat 500 D – F – L – Giardiniera

Kit of Rings for Piston Oversized +0,60 mm / Ø 68,00 mm Fiat 500 D – F – L – Giardiniera

Kit of Rings for Piston Ø 70,00 mm – height 2/2/3,5 mm – Fiat 500 D – F – L – Giardiniera

Kit of Rings for Piston Ø 70,00 mm – height 2/2/4 mm – Fiat 500 D – F – L – Giardiniera

9

Kit of Rings for Piston Standard Ø 67,40 mm Fiat 500 D – F – L – Giardiniera

Kit of Rings for Piston Oversized +0,40 mm / Ø 67,80 mm Fiat 500 D – F – L – Giardiniera

Kit of Rings for Piston Oversized +0,60 mm / Ø 68,00 mm Fiat 500 D – F – L – Giardiniera

Kit of Rings for Piston Ø 70,00 mm – height 2/2/3,5 mm – Fiat 500 D – F – L – Giardiniera

Kit of Rings for Piston Ø 70,00 mm – height 2/2/4 mm – Fiat 500 D – F – L – Giardiniera

10

Kit of Rings for Piston Standard Ø 67,40 mm Fiat 500 D – F – L – Giardiniera

Kit of Rings for Piston Oversized +0,40 mm / Ø 67,80 mm Fiat 500 D – F – L – Giardiniera

Kit of Rings for Piston Oversized +0,60 mm / Ø 68,00 mm Fiat 500 D – F – L – Giardiniera

Kit of Rings for Piston Ø 70,00 mm – height 2/2/3,5 mm – Fiat 500 D – F – L – Giardiniera

Kit of Rings for Piston Ø 70,00 mm – height 2/2/4 mm – Fiat 500 D – F – L – Giardiniera
