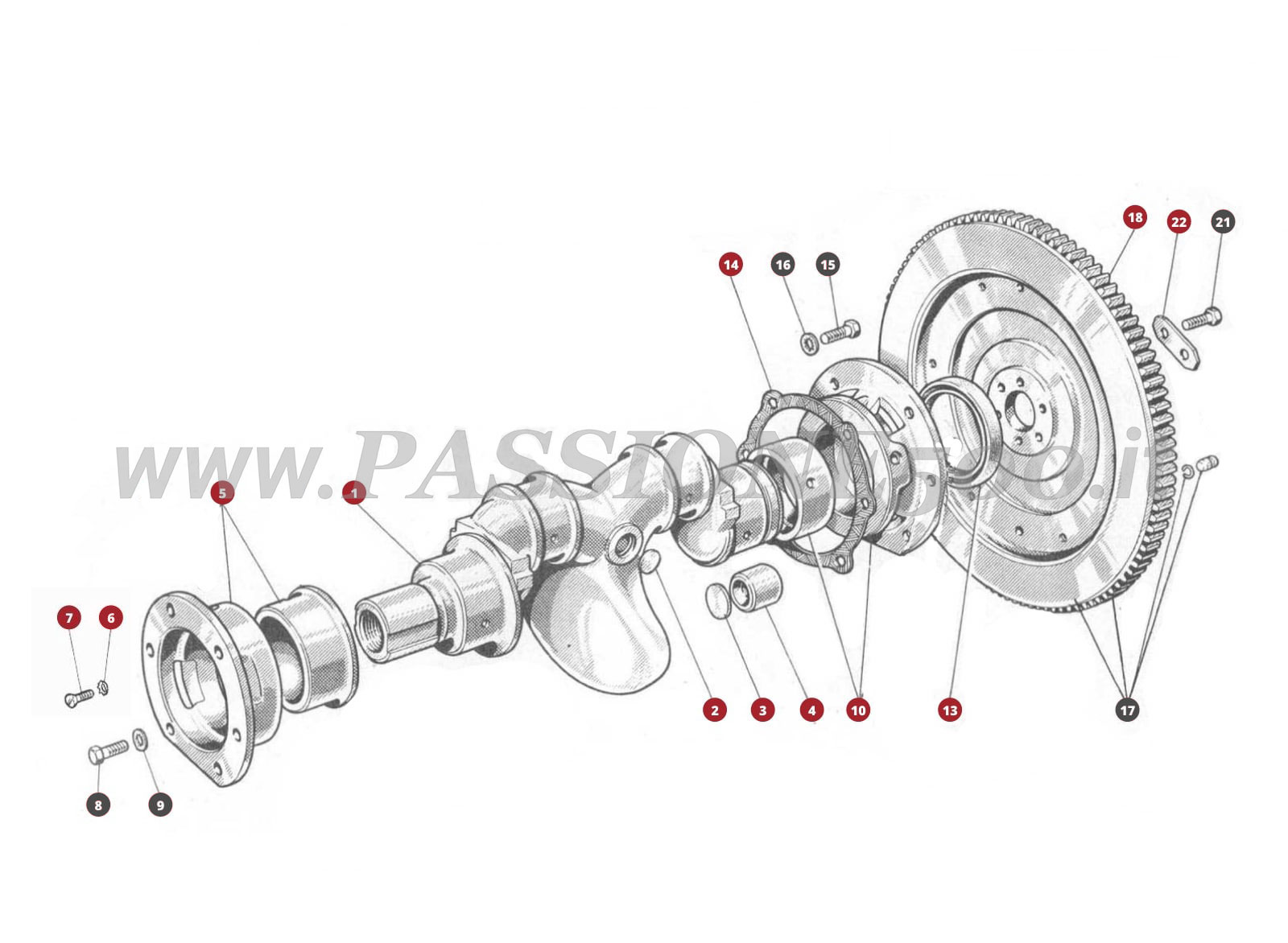

EXPLODED VIEW 3M – Crankshaft FIAT 500N

Select an exploded view number to view the product

EXPLODED VIEW 3M – Crankshaft FIAT 500N

EXPLODED VIEW 3M – Crankshaft FIAT 500N

2

Crankshaft Plug Kit Fiat 500

4,00 €
COD: MOT190B

1

Reconditioned Crankshaft – with return of the used spare part – Fiat 500 N (from engine n.° 146091) – D – F – L – R – Giardiniera

189,00 €
COD: MOT190

3

Crankshaft Plug Kit Fiat 500

4,00 €
COD: MOT190B

4

Crankshaft Pilot Spigot Bearing in Sintered Metal Fiat 500 N (from engine n.° 418122) – D – F – L – R – Giardiniera

18,00 €
COD: MOT200

Crankshaft Pilot Spigot Bearing Fiat 500 N (from engine n.° 418122) – D – F – L – R – Giardiniera

18,00 €
COD: MOT200B

5

Crankshaft Front Main Bearing – Standard Size – Fiat 500 N (from engine n.° 146091) – D – F – L – R – Giardiniera

69,00 €
COD: MOT191

Crankshaft Front Main Bearing – Undersized -0,20 mm – Fiat 500 N (from engine n.° 146091) – D – F – L – R – Giardiniera

69,00 €
COD: MOT192

Crankshaft Front Main Bearing – Undersized -0,40 mm – Fiat 500 N (from engine n.° 146091) – D – F – L – R – Giardiniera

69,00 €
COD: MOT192B

Crankshaft Front Main Bearing – Undersized -0,60 mm – Fiat 500 N (from engine n.° 146091) – D – F – L – R – Giardiniera

69,00 €
COD: MOT192C

Crankshaft Front Main Bearing in Steel – Standard Size – / Fiat 500 N (from engine n.° 146091) – D – F – L – R – Giardiniera

96,00 €
COD: MOT195B

Crankshaft Front Main Bearing in Steel – without measure – Fiat 500 N (from engine n.° 146091) – D – F – L – R – Giardiniera

96,00 €
COD: MOT195D

6

Countersunk Screw with Washer for Crankshaft Front Main Bearing Fixing Fiat 500

2,50 €
COD: MOT195

7

Countersunk Screw with Washer for Crankshaft Front Main Bearing Fixing Fiat 500

2,50 €
COD: MOT195

8

9

10

Crankshaft Rear Main Bearing – Standard Size – Fiat 500 N (from engine n. 146091) – D – F – L – R – Giardiniera

69,00 €
COD: MOT193

Crankshaft Rear Main Bearing – Undersized -0,20 mm – Fiat 500 N (from engine n.° 146091) – D – F – L – R – Giardiniera

69,00 €
COD: MOT194

Crankshaft Rear Main Bearing – Undersized -0,40 mm – Fiat 500 N (from engine n.° 146091) – D – F – L – R – Giardiniera

69,00 €
COD: MOT194B

Crankshaft Rear Main Bearing – Undersized -0,60 mm – Fiat 500 N (from engine n.° 146091) – D – F – L – R – Giardiniera

69,00 €
COD: MOT194C

13

Rear Engine Crankshaft Oil Seal – Flywheel Side – Fiat 500

4,00 €
COD: MOT17

Silicone Rear Engine Crankshaft Oil Seal – Flywheel Side – Fiat 500

9,00 €
COD: MOT17B

Full Engine Gasket Set Fiat 500 N (from engine n.° 135740) – D

60,00 €
COD: MOT1

Full Engine Gasket Set Fiat 500 N (until engine n.° 135739)

75,00 €
COD: MOT1B

14

Rear Main Crankshaft Bearing Gasket Fiat 500

3,00 €
COD: MOT23

Full Engine Gasket Set Fiat 500 N (from engine n.° 135740) – D

60,00 €
COD: MOT1

Full Engine Gasket Set Fiat 500 N (until engine n.° 135739)

75,00 €
COD: MOT1B

15

16

17

18

Flywheel Ring Gear Fiat 500 N – D – Giardiniera base D

86,00 €
COD: MOT205

21

22

Flywheel Securing Plate Fiat 500 N – D – F – L – R (until engine n.° 503133) – Giardiniera (until engine n.° 496605)

3,00 €
COD: MOT207
