EXPLODED VIEW 13M – Air and cooling system FIAT 500N

Select an exploded view number to view the product

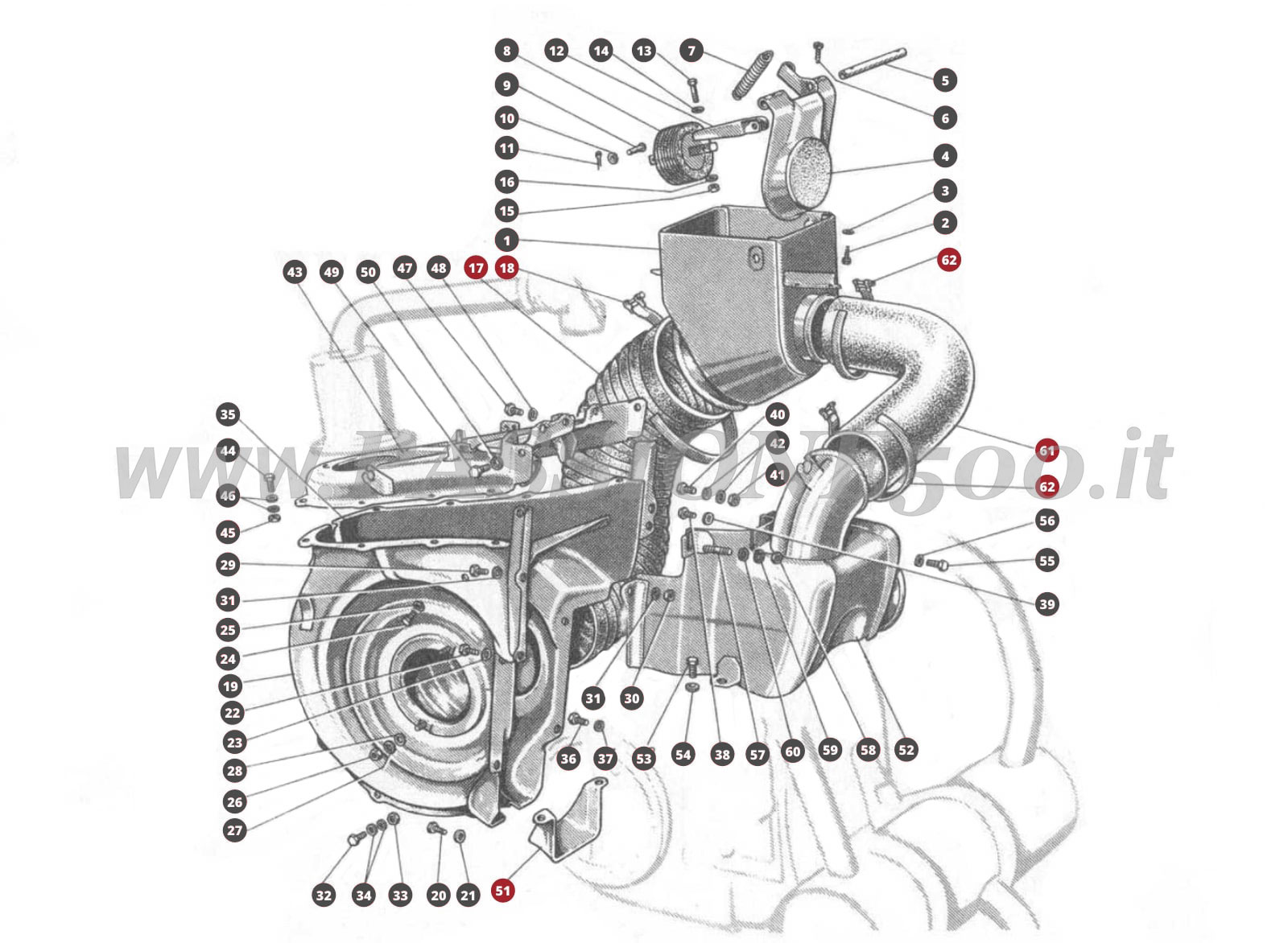

EXPLODED VIEW 13M – Air and cooling system FIAT 500N

EXPLODED VIEW 13M – Air and cooling system FIAT 500N

17

Air Intake Hose Pipe Duct / in Rubberized Canvas and Reinforcing Metal Wire / Fiat 500 N – D – F – L – R

25,00 €
COD: MOT232

18

Air Hoses Securing Clip Fiat 500

2,06 €
COD: MOT233

51

Engine Oil Sump Air Deflector Fiat 500 N – D – F – L – R

13,00 €
COD: MOT273D

61

Thermostat Housing Heater Hose Pipe Duct Fiat 500 N (until engine n.° 071742)

49,00 €
COD: MOT265

62

Air Hoses Securing Clip Fiat 500

2,06 €
COD: MOT233

62

Air Hoses Securing Clip Fiat 500

2,06 €
COD: MOT233
