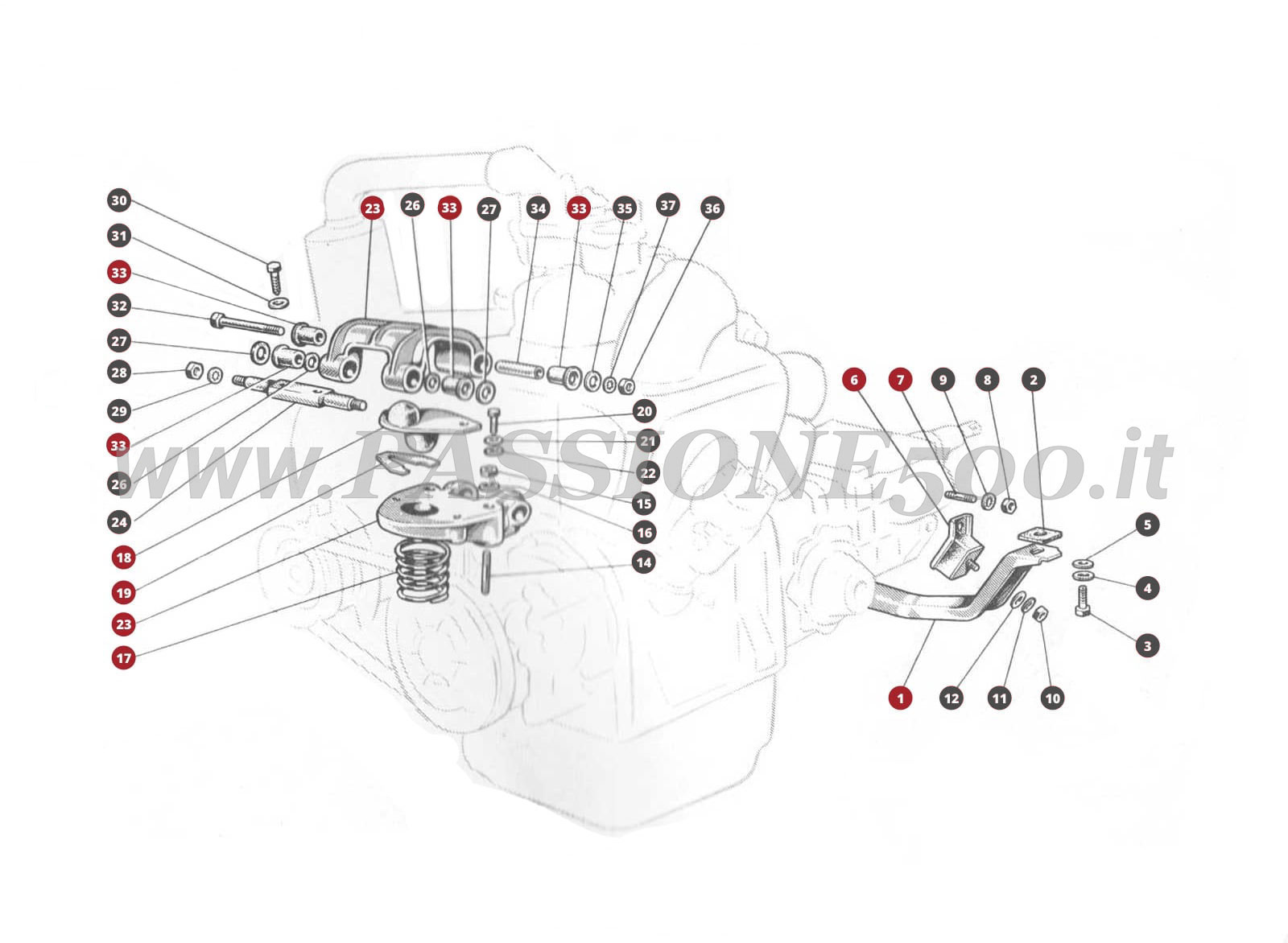

EXPLODED VIEW 26M – Engine and gearbox suspension mount FIAT 500D

Select an exploded view number to view the product

EXPLODED VIEW 26M – Engine and gearbox suspension mount FIAT 500D

2

1

3

4

5

6

7

8

9

10

11

12

14

15

16

17

18

19

20

21

22

23

23

24

26

27

28

29

30

31

32

33

33

33

33

EXPLODED VIEW 26M – Engine and gearbox suspension mount FIAT 500D

EXPLODED VIEW 26M – Engine and gearbox suspension mount FIAT 500D

2

1

Gearbox Support Bracket Fiat 500 N – D – F – L – Giardiniera

3

4

5

6

Gearbox Mount Fiat 500

7

Gearbox Support Bracket Fixing Stud Fiat 500

8

9

10

11

12

14

15

16

17

Engine Suspension Mounting Spring Fiat 500 N – D – F – L

Engine Suspension Mounting Reinforced Spring Fiat 500 N – D – F – L

Engine Suspension Mount Overhaul Kit Fiat 500 N – D – F – L

18

Rear Engine Suspension Mount Fiat 500 N – D – F – L

Engine Suspension Mount Overhaul Kit Fiat 500 N – D – F – L

19

20

21

22

23

Complete Engine Suspension Mount Fiat 500 N – D – F – L

23

Complete Engine Suspension Mount Fiat 500 N – D – F – L

24

26

26

27

27

28

29

30

31

32

33

Engine Suspension Mount Rubber Bush Fiat 500 N – D – F – L

Engine Suspension Mount Overhaul Kit Fiat 500 N – D – F – L

33

Engine Suspension Mount Rubber Bush Fiat 500 N – D – F – L

Engine Suspension Mount Overhaul Kit Fiat 500 N – D – F – L

33

Engine Suspension Mount Rubber Bush Fiat 500 N – D – F – L

Engine Suspension Mount Overhaul Kit Fiat 500 N – D – F – L

33

Engine Suspension Mount Rubber Bush Fiat 500 N – D – F – L

Engine Suspension Mount Overhaul Kit Fiat 500 N – D – F – L

34

35

36

37
